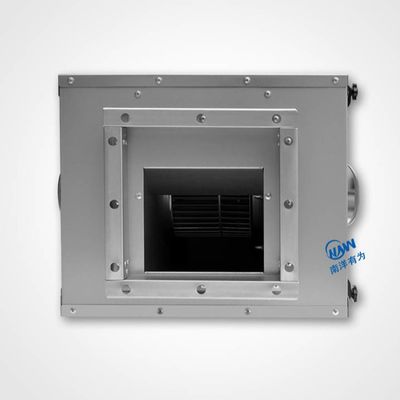

250mm 4200m3/H Centrifugal Metal Inline Cabinet Fan

MULTI - Purpose Metal Inline Cabinet Fan With High Efficient Motor And Easy Installation

Powerful air volume / High pressure / Low Noise / Metal housing  / High Efficient motor

Which can enhance air volume and pressure . Also can combine with filter cabinet to get clean air ventilating .

NANYOO model is design basing on leading performance and convenient using and easily maintenance

MULTI-PURPOSE / COMMERCIAL KITCHEN DISCHARGING LAMPBLACK

Vented and exhaust in Restaurants , Net bar , Hotels , Factories and other places of large

Nanyoo Cabinet Fan Features

• Impact design which is applicable for installation in most of sites.

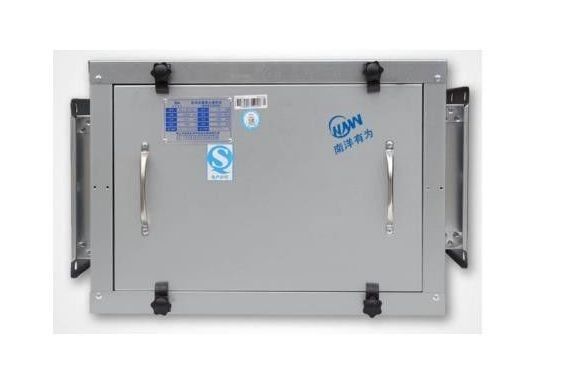

• Both side is with maintenance doors design and easily maintenance.

• Low power, high pressure and stable running.

• Elegant design, using firm and fireproof galvanized metal

30 YEARS PROFESSIONAL MOTOR TECHNOLOGY / HIGH EFFICENCY / MORE ENERGY-SAVING AND LAST LONGER

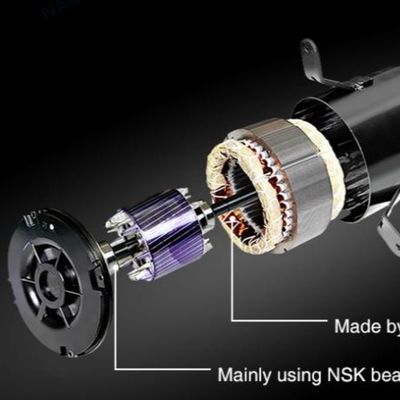

Using bigger core diameter ,longer core lengh , big stator slot dimensions and thicker copper diameter to efficiency improving

In the same air volume and the same wind pressure ,

NANYOO motors are lower in power and higher energy efficiency

10000㎥ / h air volume VS conventional turbofan

Installation Dimensions

SPECIFICATIONS

Frequency / 50HZ                           110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

OPERATING HINTS

1) If using for kicthen discharging lampblack , and the right installation order , fan housing lampblack purifier -motor .

2) Air volume below 12000(㎥ / h)use 2.5 m㎡ wire , If air volume for 15000-2000(㎥ / h)will use 4 m㎡ wire .

3) Quggestion on installation with distribution box .

4) Suggestion to make a soft connection between the machine and the exhaust pipe ,

    reduce the resonace between the machine and the duct .

Warranty

* This appliance is not intended for use by persons (including children) with reduced physical ,

   sensory or mental capabilities , or lack of experience and knowledge , unless they have been given supervision

   or instruction concerning use of the appliance by a person responsible for their safety .

*  Children should be supervised to ensure that they do not play with the appliance .

*  In one month after products be sold, the products quality is indeed a problem . The products return , replacement

   or repair free of charge.
* The product sold within one year , under normal use and maintenance of machines ,

  The products in the free repair period.
* Repair products for life , but one of the following charging repair ⇒
 1. The damage of use , maintenance or custody caused by improper ;

 2. Damage to the demolition or moving of the company maintenance department to repair damage ;

 3. Without a valid invoice or the purchase certificate ;

 4 .Model and the invoice inconsistent maintenance products ;

 5. Damage due to force majeure ;
