6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans

6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans
6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans

Large Image :  6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans

Product Details:
Place of Origin: China
Brand Name: NANYOO
Certification: CE/CB/CCC
Model Number: KTJ-25/23/28/31/35
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton With Foam Protection
Delivery Time: 20-35 work days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 3000pcs per Month

6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans

Description
Type: Separate Cabins Name: Cabinet Box Centrifugal Ventilation Fan
Color: Customer,Silver Voltage: 220V/380V
Air Volume: 6550-15200 CMH Blade Material: Aluminum
Mounting: Duct Fan,Other After-sales Service Provided: Online Support,No After-sales Service
Speed: 3000/1450/960/730rpm,3500 Electric Current Type: AC
Application: Ventilation,Smoke Exhaust,restaurant,high Temperature Resistant,Cooling Material: Galvanized Sheet Steel,Cast Iron
Warranty: 3 Years Size: 4"/6"/8"/10"/12"
Product Name: Centrifugal Exhaust Fan,Low Noise Ventilation Cabinet Type Centrifugal Fan,High Temperature Cabinet Type Smoke Exhaust Centrifugal Fan,centrifugal Ventilator Blower Fan Motor: Anti-explosion,high Temperature Resistant
Feature: Low Noise,High Efficiency/High Performance
High Light:

15200CMH Cabinet Centrifugal Fan

,

6550CMH Cabinet Exhaust Fans

,

Air Conditioner Cabinet Exhaust Fans

Description

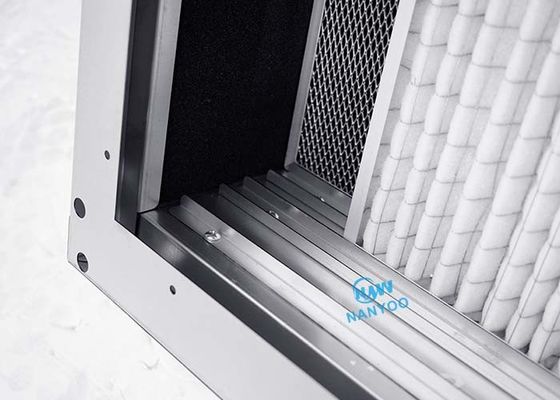

Cabinet Fan belongs to Duct Fan/Inline Fan, which is widely use in commercial and industry site, hotels, shopping malls and factories. which can enhance air volume and pressure. Also can combine with filter cabinet to get clean air ventilating.

Nanyoo model is design basing on leading performance and convenient using and easily maintenance



6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 0  6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 1



Nanyoo Cabinet Fan Features

  • Impact design which is applicable for installation in most of sites.

  • Both side is with maintenance doors design and easily maintenance.

  • Low power, high pressure and stable running.

  • Elegant design, using firm and fireproof galvanized metal.

Nanyoo Cabinet Fan Advantages

6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 2



Installation Dimensions

6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 3



model A B C D E F G H inlet ID side Outlet ID side
Horizontal Vertical Horizontal Vertical
KTJ-25-20 548 460 511 506 380 180 172 48 240 230 240 230
KTJ-25-20D 548 460 511 506 380 180 172 48 240 230 240 230
KTJ-23-32 520 590 483 632 436 180 218 48 289 278 490 326
KTJ-23-32D 520 590 483 632 436 180 218 48 289 278 490 326
KTJ-25-42 520 590 483 632 436 180 218 48 338 278 490 326
KTJ-25-42D 520 590 483 632 436 180 218 48 338 278 490 326
KTJ-28-52 640 700 570 748 534 137 50 48 350 275 600 415
KTJ-31-62 640 740 570 788 534 137 50 48 350 275 642 415
KTJ-31-72 700 740 630 786 600 253 50 48 350 406 636 420
KTJ-31-82 700 740 630 786 600 253 50 48 350 406 660 502
KTJ-35-100 810 785 740 833 667 250 50 48 390 400 700 500
KTJ-35-120 810 885 740 933 667 250 50 48 390 400 800 500



Specifications



6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 4

6550CMH-15200CMH Commercial Industry Cabinet Exhaust Fans 5

model Voltage Hz Dia of blower In power Air volume Static Noise Mark
KTJ-25-20 380V 50Hz 250mm 400W 2000m³/h 450Pa 56dB
KTJ-25-20D 220V 50Hz 250mm 500W 2000m³/h 450Pa 56dB High
220V 50Hz 250mm 350W 1450 m³/h 310 Pa 47dB Low
KTJ-23-32 380V 50Hz 230mm 580W 3200m³/h 440Pa 62dB
KTJ-23-32D 220V 50Hz 230mm 660W 3200m³/h 440Pa 62dB High
220V 50Hz 230mm 370W 2200 m³/h 305 Pa 52dB Low
KTJ-25-42 380V 50Hz 250mm 840W 4200m³/h 460Pa 65dB
KTJ-25-42D 220V 50Hz 250mm 780W 4200 m³/h 460 Pa 65 dB High
220V 50Hz 250mm 650W 2950 m³/h 330 Pa 56 dB Low
KTJ-28-52 380V 50Hz 280mm 750W 5200m³/h 306Pa 61dB
KTJ-31-62 380V 50Hz 315mm 1100W 6200m³/h 418Pa 64dB
KTJ-31-72 380V 50Hz 315mm 1500W 7200m³/h 421Pa 65dB
KTJ-31-82 380V 50Hz 315mm 1500W 8200m³/h 466Pa 66dB
KTJ-35-100 380V 50Hz 350mm 2200W 10000m³/h 553Pa 68dB
KTJ-35-120 380V 50Hz 350mm 2500W 12000m³/h 596Pa 70dB



Installation methods and general range

 * Ground The fans installed on ground, must make the concrete base to fix.(If dia of impeller≤250mm,

    which can install on ground instead of concrete base)

 * high rack/hath place: to avoid vibration, need to add anti-vibration dumper.

 * Roof mounted: need to add angle iron case to fix on the roof.



Warranty

* This appliance is not intended for use by persons (including children) with reduced physical, sensory or

   mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

   instruction concerning use of the appliance by a person responsible for their safety.

* Children should be supervised to ensure that they do not play with the appliance.

* In one month after products be sold, the products quality is indeed a problem. The products return,

   replacement or repair free of charge.
* The product sold within one year, under normal use and maintenance of machines ,The products in the

   free repair period.
* repair products for life, but one of the following charging repair:
 1. the damage of use, maintenance or custody caused by improper;

 2. damage to the demolition or moving of the company maintenance department to repair damage;

 3. without a valid invoice or the purchase certificate;

 4 .Model and the invoice inconsistent maintenance products;

 5. damage due to force majeure;
