Product Details:
|
| Type: | Closs Flow Door Air Curtain | Name: | Remote Control Cross Door Air Curtain |
|---|---|---|---|
| Mounting: | Door/ Wall/ Window Mount, Other | Operating Voltage: | 220-240V/50Hz Or 110V/60Hz , 110V/50Hz , 220V/60Hz |
| Color: | Silver, Customer Requirements | Input Power: | 150W - 220W |
| Diameter Of Impeller: | 120 | Mounting Height: | 2.3-3 M |
| Size: | 0.9m / 1.0m / 1.2m /1.5m | Application: | Commercial, Shopping Malls, Airports, Restaurant, Warehouses |
| High Light: | 3D Cross Flow Door Air Curtains,1164CFM 3D Residential Air Curtain,3D 1164CFM Door Air Curtains |
||

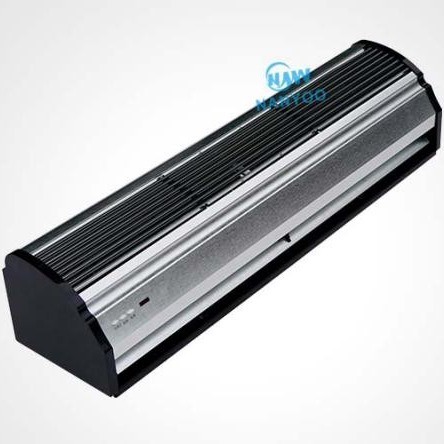

3D Body Design Cross Flow Door Air Curtain / Luxury And Classic Appearance
To See What You Find
Fibergalss material impeller, good sound insulation effect, heatproof, non-flammable, corrosion resistance
Low noise, durable / high material, good design, Excellence performance
Use fluid mechanics and engineering technology to optimize and upgrade the impeller ,
increase valid wind force, reduce the wind noise and drag coefficient .
On plane, the air friction between the wing surface and fuselage determines the efficiency of the air plance
Microstructure use a textured surface made of fiberglass, it can reduces friction resistance
So that the wind turbine blades have better aerodynamic performance
and improve the service life of wind turbine blades
Impeller blades around mobility
PRODUT PARAMETERS
| Model | Diameter of Impeller | Input Power | Air Velocity |
Air Volume |
Noise | Net Weight |
Gross Weight |
Unit Size |
Carton Size |
Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) | |
| FM-1209P-2(Y) | 120 | 150 | 11 | 1780/1047 | ≤52 | 11.5 | 12.5 | 900×220×200 | 955×270×255 | 2.3-3 |
| FM-1210P-2(Y) | 120 | 180 | 11 | 1980/1164 | ≤52 | 12.3 | 13.5 | 1000×220×200 | 1055×270×255 | 2.3-3 |
| FM-1212P-2(Y) | 120 | 180 | 11 | 2370/1394 | ≤54 | 14.3 | 15.8 | 1200×220×200 | 1255×270×255 | 2.3-3 |
| FM-1215P-2(Y) | 120 | 220 | 11 | 2970/1747 | ≤55 | 16.8 | 18.8 | 1500×220×200 | 1555×270×255 | 2.3-3 |
Four advanced technology , it's differed from the others . (It's unusual)
30 years for motor R & D and manuafacturing, more reliable quality
Use fluid mechanics rotor designs, the wind force got stronger and less noise
Impeller with glass fiber material, good sound insulation performances / insulation
/ corrosion resistance and durable
Dual direction inlet air, wind noise is more lower
30 years professional technology focus on motor
Higher efficient, more quiet, Longer service life / Using bigger core diameter, longer core lengh ,
big stator slot dimensions and thicker copper wire .
under the same air volume and wind pressure, the motor design with lower power ,
provides more energy saving and longer service life
A trong wind , Really Impede SAVING 90% ENERGY
Mounting Height: 2.3-3
Door Air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,
Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases
and provide a comfortable working , shopping and leisure environment .
INSTALLATION DIAGRAM
Step 1 Remover mounting plate from air curtain fuselage
Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for the mounting plate on the wall
and then fix with M8 expansion screw, the exposed part of the expansion screw is ensured to be in 13-15 mm .
Step 3 If mounted on a wooden board or soft, Use STS tapping screw, Fix the mounting plate ot the wall
Step 4 Installation method of glass door
1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .
2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine
APPLICATIONS:
Widely used in door / gate of public places
Hotel and Restaurant / Shopping Center
Certification
