Product Details:
|
| Fan Type: | Cross Flow Fan | Product Name: | Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain / Air Curtain Door |
|---|---|---|---|
| Operating Voltage: | 230 VAC, 220V, 115 VAC | Color: | White, Customer Requirements, Silver |
| Size: | 900MM To 2000 MM Door Width For Options | Mounting Height: | 2.3-3 M |
| Air Volume: | 2130 M3/h | Motor Material: | Pure Copper Motor Warranty For 5 Years |
| High Light: | Dual Direction Door Air Curtains,2130M3/H Door Air Curtains,2130M3/H Dual Direction Warm Air Curtain |
||

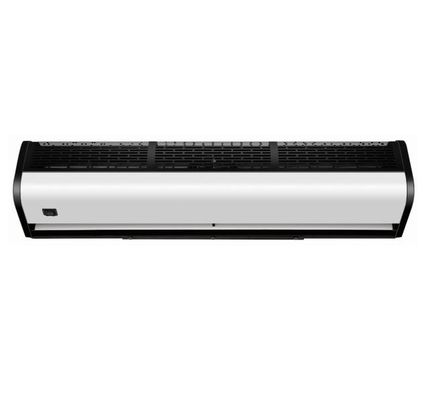

Cross Flow Door Air Curtains Dual Direction Inlet Structure And Inlet Air More Smoothly
Dual Direction inlet structure and inlet air more smoothly , wind noise is more lower
Fibergalss material impeller , good sound insulation effect , heatproof , non-flammable , corrosion resistance
Low noise , durable / high material , good design , Excellence performance
Use fluid mechanics and engineering technology to optimize and upgrade the impeller , increase valid wind force ,
reduce the wind noise and drag coefficient .
On plane , the air friction between the wing surface and fuselage determines the efficiency of the air plance .

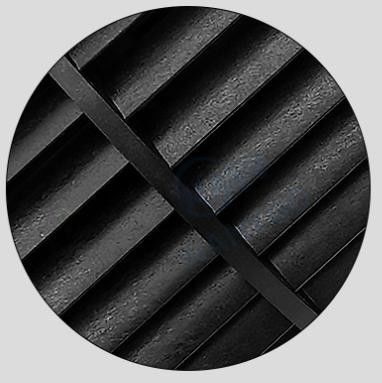

Microstructure use a textured surface made of fiberglass , it can reduces friction resistance .
so that the wind turbine blades have better aerodynamic performance .
and improve the service life of wind turbine blades
Impeller blades around mobility
PRODUCT PARAMETERS
Voltage/Frequency 220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available
| Model | Diameter of Impeller | Input Power | Air Velocity | Air Volume | Noise | Fuselage Size | Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) | |
| FM-1009H3-2(Y) | 100 | 100 | 10-11 | 1550 | ≤45 | 910×178×176 | 2.3-3 |
| FM-1010H3-2(Y) | 100 | 115 | 10-11 | 1720 | ≤45 | 1005×178×176 | 2.3-3 |
| FM-1012H3-2(Y) | 100 | 135 | 10-11 | 2130 | ≤46 | 1205×178×176 | 2.3-3 |
| FM-1015H3-2(Y) | 100 | 150 | 10-11 | 2650 | ≤48 | 1500×178×176 | 2.3-3 |
| FM-1018H3-2(Y) | 100 | 180 | 10-11 | 3200 | ≤50 | 1795×178×176 | 2.3-3 |
| FM-1020H3-2(Y) | 100 | 185 | 10-11 | 3550 | ≤52 | 2000×178×176 | 2.3-3 |
Product noise value
Four advanced technology , it's differed from the others . (it's unusual )
1 / 30 years for motor R & D and manuafacturing , more reliable quality
2 / Use fluid mechanics rotor designs , the wind force got stronger and less noise
3 / Impeller with glass fiber material , good sound insulation performances / insulation / corrosion resistance and durable
4 / Dual Direction inlet air , wind noise is more lower
30 years professional technology focus on motor
Higher efficient , more quiet , Longer service life / Using bigger core diameter , longer core length ,
big stator slot dimensions and thicker copper wire .
under the same air volume and wind pressure , the motor design with lower power , provides more energy saving
and longer service life
DIFFERENT ANGLE TO SHOW ( 360 ℃ views )
INSTALLATION DIAGRAM
Step 1 Remover mounting plate from air curtain fuselage
Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for the mounting plate on the wall ,
and then fix with M8 expansion screw ,the exposed part of the expansion screw is ensured to be in 13-15 mm .
Step 3 If mounted on a wooden board or soft , use STS tapping screw ,Fix the mounting plate ot the wall
Step 4 Installation method of glass door
1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic .
2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
