Product Details:
|
| Product Name: | Cross Flow Commerial Door Air Curtains | Fan Type: | Cross Flow Fan |
|---|---|---|---|
| Voltage: | 110V / 220V | Material: | Metal Casing |
| Color: | Silver / White | Noise: | 44db |
| Size: | 90cm/100cm/120cm/150cm/180cm/200cm | Operation: | Remote Control And Button Control |
| Motor: | Fine Copper Motor Warranty For 5 Years | Function: | Adjustable Air Deflector / High Efficient Motor / Quiet Wind Wheel |
| Mounting: | Ceiling Mount | Certification: | CB |
| High Light: | Esthetic Curved Door Air Curtains,2370m3/H Door Air Curtains,2370m3/H Air Curtains For Fly Control |
||

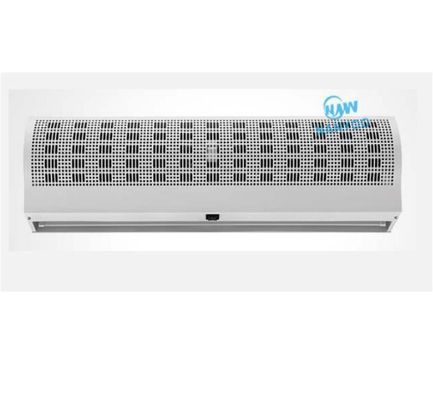

Cross Flow Door Air Curtains Slim All Metal Housing With Esthetic Curved Design
FEATURE
Slim all metal housing with esthetic curved design
Sturdy metal housing, smooth and bright apraying for a variety of applications
Metal casing with durable powder spray coating / Cross fan and wheel
Multiple width available 900 , 1000 , 1200 , 1500 , 1800 and 2000mm
Simple Design Cross Flow Door Air Curtains - Model X
SAVING 90% ENERGY , SAVING YOUR MONEY
SPECIFICATION
Voltage / Frequency: 220-240V / 50Hz, or 110V / 60Hz, 110V / 50Hz, 220V / 60Hz are all available
| Model | Diameter of Impeller | Input Power | Air Velocity |
Air Volume |
Noise | Net Weight |
Gross Weight |
Unit Size |
Carton Size |
Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) | |
| FM-1209X-2(Y) | 120 | 150 | 11 | 1780/1047 | ≤43 | 11.5 | 13.0 | 900×215×200 | 960×270×250 | 2.3-3 |
| FM-1210X-2(Y) | 120 | 150 | 11 | 1980/1164 | ≤43 | 12.1 | 13.8 | 1000×215×200 | 1060×270×250 | 2.3-3 |
| FM-1212X-2(Y) | 120 | 180 | 11 | 2370/1394 | ≤44 | 14.5 | 16.5 | 1200×215×200 | 1260×270×250 | 2.3-3 |
| FM-1215X-2(Y) | 120 | 220 | 11 | 2970/1747 | ≤46 | 17.2 | 19.7 | 1500×215×200 | 1560×270×250 | 2.3-3 |
| FM-1218X-2(Y) | 120 | 280 | 11 | 3560/2094 | ≤50 | 20.0 | 23.0 | 1800×215×200 | 1860×270×250 | 2.3-3 |
| FM-1220X-2(Y) | 120 | 320 | 11 | 3960/2329 | ≤51 | 21.5 | 25.0 | 2000×215×200 | 2060×270×250 | 2.3-3 |
Working Principle Of Air Curtain
Use for Shopping mall / Hotel / Subway / Metro
Company Profile
Founded in 1987 , Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd , (NANYOO)
has specialized in the manufacturing ,Marketing and R&D of Air Curtains , Inline Fans , HRV, Cabinet Fans
and Air Purifier for over 30 years , and become a leading professional science and technology enterprise.
Especially widely used in the door position of the wind curtain of public places manufacturers.
NANYOO has passed ISO9001 international quality management system and ISO14001 environmental management system certification. The products have passed CCC, CE, CB, RoHS and SAA certification.
