Product Details:
|
| Name: | Door Air Curtain / Air Barriver Door | Type: | Cross Flow Fan |
|---|---|---|---|
| Mounting: | Gate Door / Wall | Voltage: | 110V / 220-240V |
| Diameter Of Impeller: | 120 | Mounting Height: | 2.3-3 M |
| Airflow: | 1164 - 1980 (m³/h) / CFM | Size: | 0.9m / 1.0m / 1.2m /1.5m For Options |
| Color: | Silver , Natural , Customer Requirements | Application: | Financial Buildings, Banks, Luxury Shops And Shopping Centers Or Office Buildings |
| High Light: | 1980CFM Cross Flow Air Curtain,180W Cross Flow Air Curtain |
||

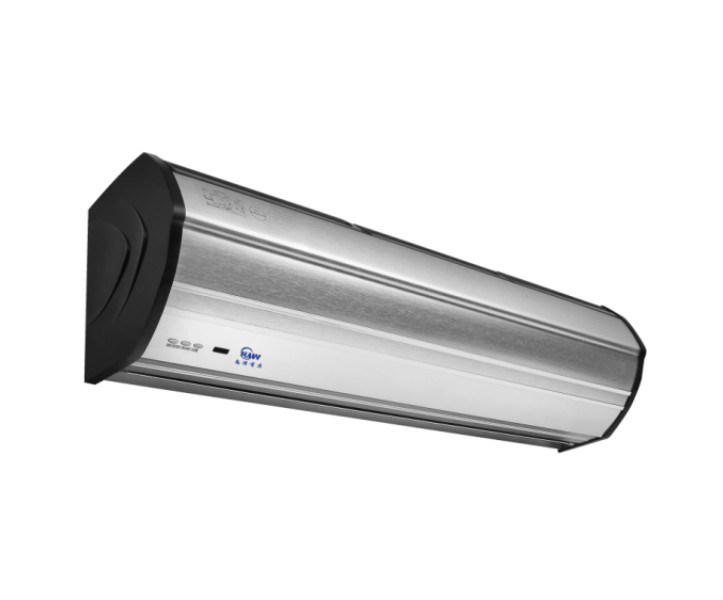

3D - Design Cross Flow Door Air Curtain Is Perfectly Suited To Premises
Such As Financial Buildings Banks Luxury Shops
Wall Mounted Door Air Curtain - FEATURES
* 3D body design, covered with a black side and back panel, luxury and classic appearance.
* The new bar grille panel and Luxury air intake design, be able to maintain a lasting clean body.
PRODUT PARAMETERS
| Model | Diameter of Impeller | Input Power | Air Velocity |
Air Volume |
Noise | Net Weight |
Gross Weight |
Unit Size |
Carton Size |
Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) | |
| FM-1209P-2(Y) | 120 | 150 | 11 | 1780/1047 | ≤52 | 11.5 | 12.5 | 900×220×200 | 955×270×255 | 2.3-3 |
| FM-1210P-2(Y) | 120 | 180 | 11 | 1980/1164 | ≤52 | 12.3 | 13.5 | 1000×220×200 | 1055×270×255 | 2.3-3 |
| FM-1212P-2(Y) | 120 | 180 | 11 | 2370/1394 | ≤54 | 14.3 | 15.8 | 1200×220×200 | 1255×270×255 | 2.3-3 |
| FM-1215P-2(Y) | 120 | 220 | 11 | 2970/1747 | ≤55 | 16.8 | 18.8 | 1500×220×200 | 1555×270×255 | 2.3-3 |
Four advanced technology , it's differed from the others . (It's unusual)
1 / 30 years for motor R & D and manuafacturing , more reliable quality
2 / Use fluid mechanics rotor designs , the wind force got stronger and less noise
3 / Impeller with glass fiber material , good sound insulation performances / insulation
/ corrosion resistance and durable
4 / Dual Direction inlet air , wind noise is more lower
30 years professional technology focus on motor
Higher efficient , More quiet , Longer service life / Using bigger core diameter , Longer core length ,
Big stator slot dimensions and thicker copper wire .
Under the same air volume and wind pressure , the motor design with lower power ,
provides more energy saving and longer service life .
A trong wind , Really Impede SAVING 90% ENERGY
Mounting Height : 2.3-3
Door Air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,
Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases
and provide a comfortable working , shopping and leisure environment .
