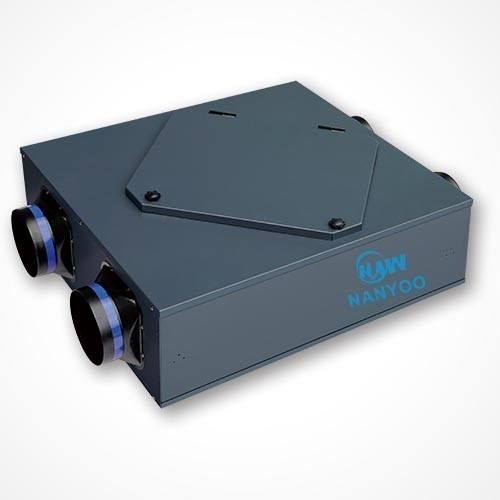

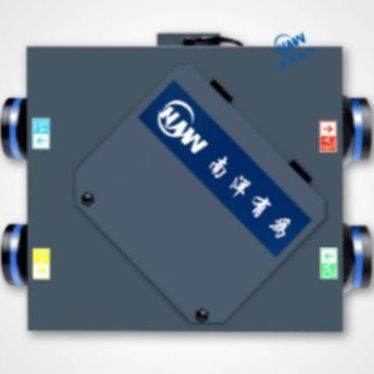

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator
500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator

Large Image :  500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator

Product Details:
Place of Origin: China
Brand Name: NANYOO
Certification: CE/CB/CCC
Model Number: NYQR1.5DPM1
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated
Packaging Details: Carton
Delivery Time: 20-30 work days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 3000 pcs per Month

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator

Description
Motor: High Quality Heating Recovery Ventilator Funtion: Low Noise ,energy Saving
Product Name: Ultrathin Heating Recovery Unit -PM1.5 Purifier Color: Black & Sliver
Air Volume: 500m3/h Heat Exchange Rate: >90%
Filting: With Primary, Hepa, Active Carbon Filter Application: Home Hotel Business, Etc
High Light:

500m3/h Heating Recovery Ventilator

,

500m3/h HRV Heat Recovery Unit

,

PM2.5 HRV Heating Recovery Ventilator

PM2.5 Purifier Heating Recovery Ventilator Competitive Price High Efficiency

What is Heating Recovery Unit(HRV)?

Heat recovery ventilation (HRV), also known as mechanical ventilation heat recovery (MVHR), is an energy recovery ventilation system which works between two sources at different temperatures. Heat recovery is a method which is increasingly used to reduce the heating and cooling demands (and thus energy costs) of buildings. By recovering the residual heat in the exhaust gas, the fresh air introduced into the air conditioning system is pre-heated (pre-cooled), and the fresh air enthalpyis increased (reduced) before the fresh air enters the room or the air cooler of the air conditioning unit performs heat and moisture treatment. A typical heat recovery system in buildings consists of a core unit, channels for fresh air and exhaust air, and blower fans. Building exhaust air is used as either a heat source or heat sink depending on the climate conditions, time of year and requirements of the building. Heat recovery systems typically recover about 60–95% of the heat in exhaust air and have significantly improved the energy efficiency of buildings .



NANYOO HRV Category

* Normal High Efficiency HRV

* Ultra-thin PM2.5 HRV

* Big Air Volume Commercial HRV





odel Air Volume (m3/h) Static Pressure (Pa) Rated Voltage Input Power (W) Summer Winter Noise [dB(A)] Dimension(mm)

Re. weight

(kg)

Temperature Efficiency (%) Enthalpy Efficiency (%) Temperature Efficiency (%) Enthalpy Efficiency (%)
High Low High Low High Low High Low High Low High Low High Low High Low
K-02DT 200 100 75 80 220V/50Hz-60Hz 65 70 76 75 59 58 76 75 69 69 30 28 665×580×268 26
K-03DT 300 250 85 75 220V/50Hz-60Hz 107 78 76 77 56 60 76 77 67 70 30 25 745×600×268 32
K-04DT 400 350 90 80 220V/50Hz-60Hz 142 121 76 77 54 58 76 77 66 68 32 26 745×800×268 38
K-06DT 600 500 100 90 220V/50Hz-60Hz 190 162 70 72 50 53 70 72 61 64 33 31 820*900*268 48
K-10DT 1000 900 100 80 220V/50Hz-60Hz 410 360 74 77 54 58 74 77 66 70 36 32 1110×1135×388 92
K-16DT 1600 1400 150 130 220V/50Hz 815 750 75 77 57 59 75 77 65 68 42 38 1350*1220*437 95
K-20DT 2000 1800 200 170 220V/50Hz 980 945 76 78 59 61 76 78 66 68 44 40 1450*1220*500 110
K-22DT 2200 1600 100 210   1580 1260 74 77 56 59 74 77 62 67 56 50 1500X1330X500 133
K-16D 1600 150 380V/50Hz 650 75 57 75 65 43 1350*1220*437 98
K-20D 2000 150 380V/50Hz 1013 76 59 76 68 45 1450*1220*500 125
K-25D 2500 110 380V/50Hz 1875 72 54 72 65 50 1550×1330×548 146
K-30D 3000 60 380V/50Hz 1525 75 58 75 68 55 1550*1330*548 165
K-35D 3500 100 380V/50Hz 2245 76 58 76 68 55 1630*1600*548 210




The Working Principle of HRV



500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 0



500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 1







500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 2





















































Dimensions and Specifications

* The Normal HRV



 500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 3500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 4

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 5

* Ultra-thin PM2.5 HRV

- Feature
- Super motor, low noise and energy saving.
- 22cm thickness only, widely used in various site.
- High efficiency filter to purify 99.3% PM2.5.
- Reach 73% heating exchange rate.
- Crystal controller, luxury outlooks

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 6




500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 7


500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 8



* Big Air Volume Commercial HRV

- Feature

- Super motor, low noise, with overload protection device.
- Fillister chamfer air exist, easily installation of air duct.
- Independent maintenance door at side panel, convenient to change of motor and filter.
- Optimized air duct design to have sufficient air pressure and air volume.
- External insulation cotton and internal equipped with drain pan to prevent from condensing water.
- Internal acoustic cotton to reduce noise level.
- Hermitical design to prevent from air leakage and turbulent flow

500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 9



- Air Volume 1500m3   -  2000m



500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 10



- Air Volume 2500m3 - 6000m



500m3/h PM2.5 Purifier HRV Heating Recovery Ventilator 11



We spend 70% of lifetime indoor ,Be kind to life and breathe fresh air
