Product Details:
|
| Fan Type: | Centrifugal Flow | Material: | Durable Full Metal Casing |
|---|---|---|---|
| Product Name: | Commercial Air Curtain/ Door Air Barrier | Voltage: | 220V/110V |
| Frequency: | 50Hz/60 Hz | Control Type: | Button/ Remote Control Options |
| Funtion: | Greater Air Pressure , Air Speed Is Strong, Lower Noise | Application: | Indoors / Restaurant / Shopping Mall / Coffee Shop, Hotel |
| High Light: | 220V Indoor Air Curtain,ROHS Indoor Air Curtain,ODM Door Air Barrier |
||
Door Air Barrier - FEATURES
* Full metal casing with unique design .
* Centrifugal style fan .
* Uniform forced airflow .
* Air speed more than 14.5 m / s .
Model - H eries Product parameters
| Model | Diameter of Impeller |
Input Power (W) |
Air Velocity |
Air Volume | Noise | Fuselage Size | Mounting Height |
| (mm) | H | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) | |
| FM-3509H(B)-L(/Y)(-MC) | 120 | 230 | 14.5 | 1020/600 | ≤44 | 900×235×215 | 3.0-3.5 |
| FM-3510H(B)-L(/Y)(-MC) | 120 | 230 | 14.5 | 1020/600 | ≤44 | 1000×235×215 | 3.0-3.5 |
| FM-3512H(B)-L(/Y)(-MC) | 120 | 305 | 14.5 | 1360/800 | ≤45 | 1200×235×215 | 3.0-3.5 |
| FM-3515H(B)-L(/Y)(-MC) | 120 | 385 | 14.5 | 1700/1000 | ≤48 | 1500×235×215 | 3.0-4.5 |
| FM-3518H(B)-L(/Y)(-MC) | 120 | 460 | 14.5 | 2040/1200 | ≤50 | 1800×235×215 | 3.0-3.5 |
| FM-3520H(B)-L(/Y)(-MC) | 120 | 460 | 18 | 20401200 | ≤50 | 2000×235×215 | 3.0-3.5 |
| FM-4509H(B)-L(/Y)(-MC) | 120 | 330 | 18 | 1260/741 | ≤46 | 900×235×215 | 4.0-4.5 |
| FM-4510H(B)-L(/Y)(-MC) | 120 | 330 | 18 | 1260/741 | ≤46 | 1000×235×215 | 4.0-4.5 |
| FM-4512H(B)-L(/Y)(-MC) | 120 | 420 | 18 | 1680/988 | ≤47 | 1200×235×215 | 4.0-4.5 |
| FM-4515H(B)-L(/Y)(-MC) | 120 | 545 | 18 | 2100/1235 | ≤50 | 1500×235×215 | 4.0-4.5 |
| FM-4518H(B)-L(/Y)(-MC) | 120 | 635 | 18 | 2520/1482 | ≤52 | 1800×235×215 | 4.0-4.5 |
| FM-4520H(B)-L(/Y)(-MC) | 120 | 635 | 18 | 2520/1482 | ≤52 | 2000×235×215 | 4.0-4.5 |
| FM-5509H(B)-L(/Y)(-MC) | 120 | 440 | 21 | 1450/853 | ≤48 | 900×235×215 | 5.0-5.5 |
| FM-5510H(B)-L(/Y)(-MC) | 120 | 440 | 21 | 1450/853 | ≤48 | 1000×235×215 | 5.0-5.5 |
| FM-5512H(B)-L(/Y)(-MC) | 120 | 550 | 21 | 1930/1135 | ≤49 | 1200×235×215 | 5.0-5.5 |
| FM-5515H(B)-L(/Y)(-MC) | 120 | 780 | 21 | 2420/1423 | ≤52 | 1500×235×215 | 5.0-5.5 |
| FM-5518H(B)-L(/Y)(-MC) | 120 | 830 | 21 | 2900/1706 | ≤54 | 1800×235×215 | 5.0-5.5 |
| FM-5520H(B)-L(/Y)(-MC) | 120 | 830 | 21 | 2900/1706 | ≤54 | 2000×235×215 | 5.0-5.5 |

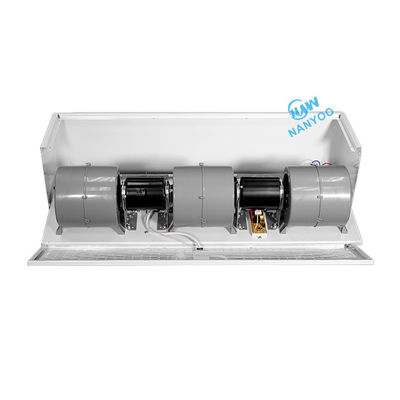

Mute Centrifugal - Flow Turbine
Greater Air Pressure, Air Speed is Stronger, Lower Noise
The blower with a volute, make the air pressure even higher, strong air speed, the noise will be lower
due to the effect of the volute
From a strong invisible door to block air circulation
NANYOO AIR CURTAIN ( Working Principle ) - SAVING 90% ENERGY
Door Air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories ,
Shops , Restaurants , Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations
and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean ,
prevent air circulating .
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust ,
insects and harmful gases and provide a comfortable working , shopping and leisure environment .
