Product Details:
|
| Motor Type: | Centrifugal Flow Air Curtains | Product Name: | Commercial Air Curtain / Door Air Barrier |
|---|---|---|---|
| Size: | 90cm/120cm/150cm/180cm/200cm For Options | Operating Voltage: | 220V-240V/50HZ, 110V/50HZ |
| Material: | Plastic | Noise: | Low Noise , Contact For Details |
| Color: | White, Or Customization | Application: | Keep The Clean Air Indoor |
| Mounting: | Door/ Wall/ Window Mount,door Air Curtain | Warranty: | 5 Years For Motor, 1 Year For Main Parts |
| High Light: | ABS Centrifugal Flow Door Air Barrier,110V 50HZ Door Air Barrier,110V 50HZ Commercial Air Curtain |
||
ABS Casing - Centrifugal Flow / Door Air Barrier Fashion With Copper Motor With Large Air Volume
30 years of experience in motor development and manufacturing

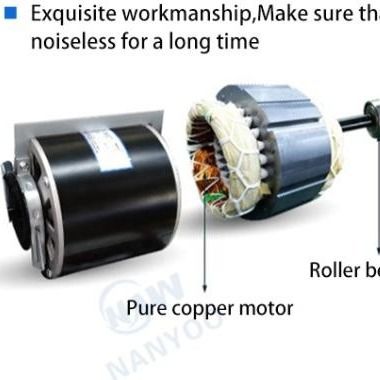

Delicate motor , Strong wind volume
Power is enough , Strong torsional force , High speed , Ensure strong power
Exquisite workmanship , Make sure that it is steady and noiseless for a long time service
Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available
| Model | Input Power (W) | Air Velocity (m/s) |
Air Volume (m³/h)/CFM | Noise (dB) | Unit Size | Mounting Height | ||||||||
| H | M | L | H | M | L | H | M | L | H | M | L | (mm) | (m) | |
| FM-3509QS-L/Y(X) | 200 | 180 | 150 | 15.5 | 14.3 | 12.5 | 1080/635 | 996/586 | 870/512 | ≤44 | ≤42 | ≤41 | 900x230x220 | 3-3.5 |
| FM-3512QS-L/Y(X) | 250 | 225 | 185 | 15.5 | 14.3 | 12.5 | 1450/853 | 1337/786 | 1168/687 | ≤45 | ≤43 | ≤42 | 1200x230x220 | 3-3.5 |
| FM-3515QS-L/Y(X) | 325 | 290 | 240 | 15.5 | 14.3 | 12.5 | 1800/1059 | 1600/941 | 1398/822 | ≤48 | ≤46 | ≤44 | 1500x230x220 | 3-3.5 |
| FM-4509QS-L/(Y)(X) | 350 | 260 | 200 | 19 | 16 | 12.5 | 1320/776 | 1100/647 | 860/506 | ≤46 | ≤44 | ≤42 | 900x230x220 | 4-4.5 |
| FM-4512QS-L/(Y)(X) | 440 | 320 | 225 | 19 | 16 | 12.5 | 1770/1041 | 1455/856 | 1150/676 | ≤47 | ≤45 | ≤43 | 1200x230x220 | 4-4.5 |
| FM-4515QS-L/(Y)(X) | 575 | 435 | 330 | 19 | 16 | 12.5 | 2200/1294 | 1850/1088 | 1450/853 | ≤50 | ≤47 | ≤45 | 1500x230x220 | 4-4.5 |
| FM-5509QS-L/(Y)(X) | 440 | 325 | 250 | 22 | 18.5 | 14.5 | 1520/894 | 1270/747 | 1000/588 | ≤52 | ≤50 | ≤47 | 900x230x220 | 5-5.5 |
| FM-5512QS-L/(Y)(X) | 530 | 385 | 270 | 22 | 18.5 | 14.5 | 2027/1192 | 1670/1044 | 1330/782 | ≤54 | ≤52 | ≤50 | 1200x230x220 | 5-5.5 |
| FM-5515QS-L/(Y)(X) | 710 | 535 | 405 | 22 | 18.5 | 14.5 | 2543/1496 | 2135/1256 | 1680/988 | ≤55 | ≤53 | ≤51 | 1500x230x220 | 5-5.5 |

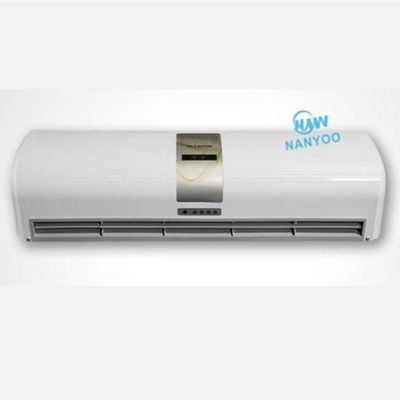

Plastic air curtain with exquisite appearance / low noise suitable for your home and office
Door air curtain plastic appearance with special and elegant design
With filter and easy cleaning
Four control models to meet different clients needs and loactions
Door Air Barrier suitable for many kinds of places
Mounting height for 3 m - 5.5 m
Factories / Shopping Mall / Warehouse / Hotels / Super market and so on
Motor : Mute Centrifugal - Flow wheel
Higher air pressure , Stronger air velocity , lower noise
Product Specification
Working principle : SAVING 90% ENERGY
Door Air Curtain also known as Air door , Air Barrier , widely used in Factories / Shops / Restaurants / Pharmacies
Cold storage / Hotels / Hospitals / Airports / Stations and other environments and all air-conditioned place
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating Indoor
and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases,
and provide a comfortable working , shopping and leisure environment.
What is the main functions of Air Curtain?
1. Energy conservation
2. Isolate the smell
3. Dust-proof, insect prevention
How to choose suitable air curtain?
