Product Details:
|
| Type: | Cross Flow Door Air Curtain | Name: | Remote Control Cross Door Air Curtain |
|---|---|---|---|
| Mounting: | Door/ Wall/ Window Mount, Other | Operating Voltage: | 220-240V/50Hz Or 110V/60Hz , 110V/50Hz , 220V/60Hz |
| Color: | Silver, Customer Requirements | Input Power: | 150W - 220W |
| Diameter Of Impeller: | 120 | Mounting Height: | 2.3-3 M |
| Size: | 0.9m / 1.0m / 1.2m /1.5m | Application: | Commercial, Shopping Malls, Airports, Restaurant, Warehouses |
| Highlight: | 1047CFM Door Air Curtains,220W Door Air Curtains,0.9m Door Air Curtains |
||

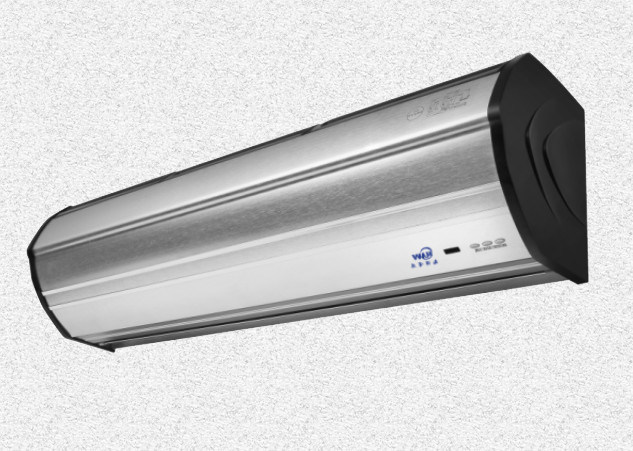

3D Cross Flow Door Air Curtains With Low Noise, Durable / High Material, Good Design, Excellence Performance
- FEATURE
* Covered with a black side and back panel
* The new bar grille panel and Luxury air intake design,
be able to maintain a lasting clean body
PRODUT PARAMETERS
| Model | Diameter of Impeller | Input Power | Air Velocity |
Air Volume | Noise | Net Weight |
Gross Weight |
Unit Size | Carton Size | Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (KG) | (KG) | (mm) | (mm) | (m) | |
| FM-1209P-2(Y) | 120 | 150 | 11 | 1780/1047 | ≤52 | 11.5 | 12.5 | 900×220×200 | 955×270×255 | 2.3-3 |
| FM-1210P-2(Y) | 120 | 180 | 11 | 1980/1164 | ≤52 | 12.3 | 13.5 | 1000×220×200 | 1055×270×255 | 2.3-3 |
| FM-1212P-2(Y) | 120 | 180 | 11 | 2370/1394 | ≤54 | 14.3 | 15.8 | 1200×220×200 | 1255×270×255 | 2.3-3 |
| FM-1215P-2(Y) | 120 | 220 | 11 | 2970/1747 | ≤55 | 16.8 | 18.8 | 1500×220×200 | 1555×270×255 |
2.3-3 |
Fibergalss material impeller, good sound insulation effect, heatproof, non-flammable, corrosion resistance
Low noise, durable / high material, good design, Excellence performance
Use fluid mechanics and engineering technology to optimize and upgrade the impeller ,
increase valid wind force, reduce the wind noise and drag coefficient .
On plane, the air friction between the wing surface and fuselage determines the efficiency of the air plance
Microstructure use a textured surface made of fiberglass, it can reduces friction resistance
So that the wind turbine blades have better aerodynamic performance
and improve the service life of wind turbine blades
30 years professional technology focus on motor
Higher efficient, more quiet, Longer service life / Using bigger core diameter, longer core lengh ,
big stator slot dimensions and thicker copper wire .
under the same air volume and wind pressure, the motor design with lower power ,
provides more energy saving and longer service life
A trong wind , Really Impede SAVING 90% ENERGY
Mounting Height: 2.3-3
Door Air curtain / Door air barrier also known as Air door , Air Barrier , widely used in Factories , Shops , Restaurants ,
Pharmacies , Cold storage , Hotels , Hospitals , Airports , Stations and other environments and all air-conditioned place .
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating
Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases
and provide a comfortable working , shopping and leisure environment .
APPLICATIONS:
Widely used in door / gate of public places
Hotel and Restaurant / Shopping Center
