Product Details:
|
| Type: | Air Curtain,Other,Commercial & Air Door | Mounting: | Door/Gate/Wall Mounting |
|---|---|---|---|
| Operating Voltage: | 220V-240V/50HZ | Warranty: | 5 Years For Motor, 1 Year For Main Parts |
| Condition: | Used | Certification: | CE CB SASO CCC |
| Noise Level: | 63db | Product Name: | Door/ Window/ Wall Air Curtain, Competitive Price Commercial / Industrial Door Air Curtains |
| Size: | 914*345*351mm | Application: | Home , Commercial, Shopping Malls, Airports, Restaurant, Warehouses |
| Material: | Metal / White Color | Blower: | Metal Blower |
| Highlight: | 45db Industrial Air Curtain Door,Centrifugal Flow Industrial Air Curtain Door,45db Commercial Air Curtain |
||

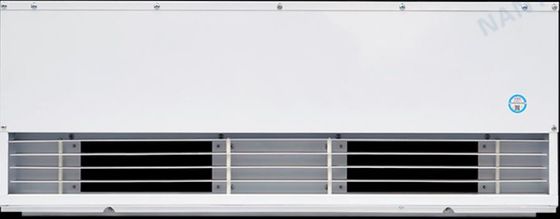

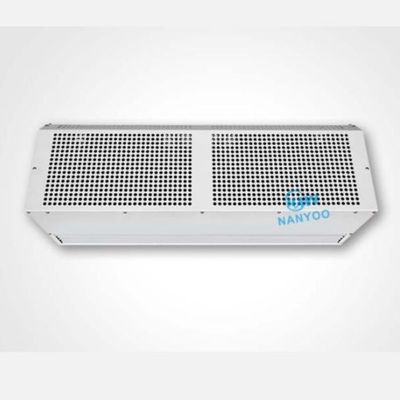

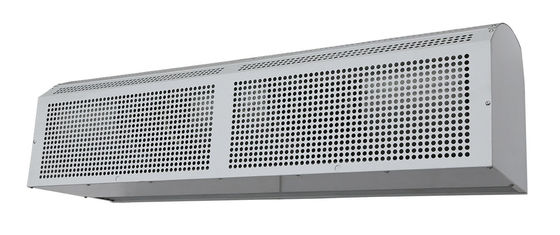

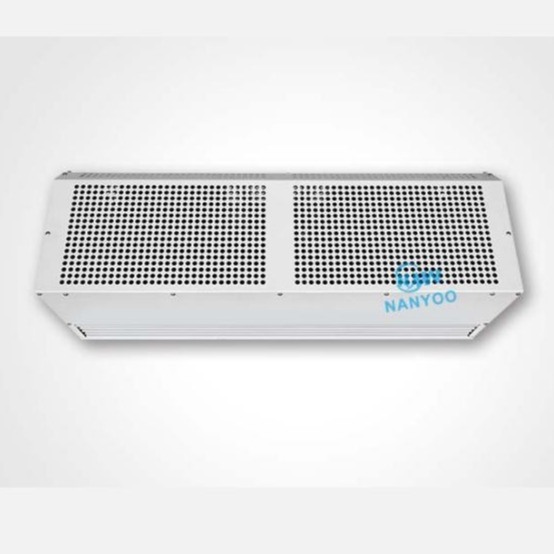

Industrial Air Curtain Centrifugal Flow With Metal Casing Design Use For Tall Gate / Door / Factories , Shopping Mall
What is Industrial Air Curtain ?

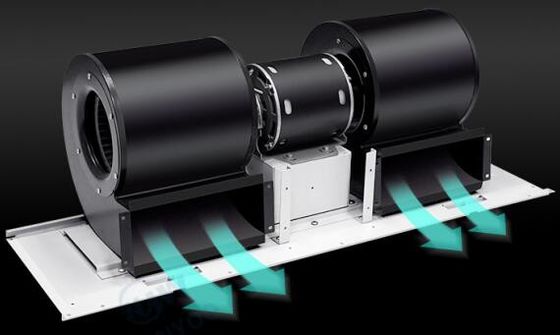

Industrial normally use centrifugal flow system to have larger air flow and stronger air pressure so that can working at 5m to 8m height place mounted .
Basing on the stronger air speed and air flow, Industrial Air Curtain often applicable in factories , shopping mall , warehouse and such sites where have tall gate .
USING OCCASIONS -- Werehouse logistics

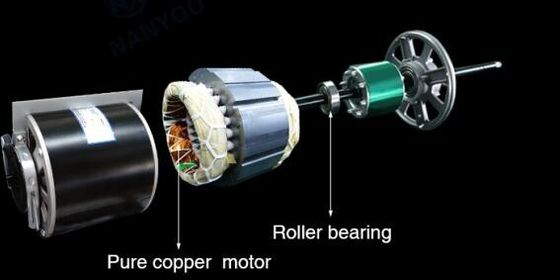

Features and Functions
Industrial Air Curtains - model explanation
The Dimensions for Installation
Specifications for your reference
110V/60Hz, 110V/50Hz, 220V/60Hz are all available
| Model | Voltage /Frequency | Input Power (W) | Air Velocity (m/s) |
Air Volume (m³/h)/CFM | Noise (dB) | Fuselage Size | Mounting Height |
| ( V / HZ) | H | H | H | H | (mm) | (m) | |
| FM-6009GY | 220-240/50 | 800 | 21 | 3500 | ≤63 | 914x345x351 | 6 - 7 |
| FM-6012GY | 220-240/50 | 1200 | 21 | 4650 | ≤65 | 1218x345x351 | 6 - 7 |
| FM-6015GY | 220-240/50 | 1600 | 21 | 5700 | ≤66 | 1523x345x351 | 6 - 7 |
| FM-6009GY | 380 /50 | 1100 | 24 | 3750 | ≤65 | 988 x 410 x 417 | 6 - 8 |
| FM-6012GY | 380 /50 | 1600 | 24 | 5000 | ≤66 | 1292 x 410 x 417 | 6 - 8 |
| FM-6015GY | 380 /50 | 2200 | 24 | 6250 | ≤68 | 1597 x 410 x 417 | 6 - 8 |
