Product Details:
|

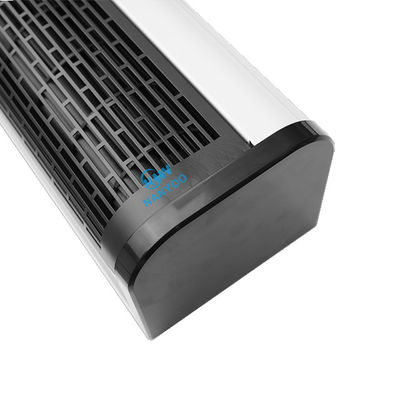

| Type: | Air Curtain , Commercial / Household / Indoor | Product Name: | Commercial Air Curtain, Remote Control Cross Flow Strong Wind Low Noise Metal Door Air Curtain |
|---|---|---|---|
| Speed: | 1 Or 2 Speeds For Options | Operating Voltage: | 230 VAC, 220V, 115 VAC |
| Mounting: | Door / Wall / Window Mount, Other | Mounting Height: | 2.3-3 M |
| Air Flow: | 1780 CFM | Color: | White & Black , Customer Requirements |
| Highlight: | 1780CFM Residential Door Air Curtain,1550m3/h Residential Door Air Curtain |
||
PRODUCTS PARAMETERS
Voltage/Frequency:220 - 240V / 50Hz , or 110V / 60Hz , 110V / 50Hz , 220V / 60Hz are all available
| Model | Diameter of Impeller | Input Power | Air Velocity |
Air Volume | Noise | Fuselage Size | Mounting Height |
| (mm) | (W) | (m/s) | (m³/h)/CFM | (dB) | (mm) | (m) | |
| FM-1009H3-2(Y) | 100 | 100 | 10-11 | 1550 | ≤45 | 910×178×176 | 2.3-3 |
| FM-1010H3-2(Y) | 100 | 115 | 10-11 | 1720 | ≤45 | 1005×178×176 | 2.3-3 |
| FM-1012H3-2(Y) | 100 | 135 | 10-11 | 2130 | ≤46 | 1205×178×176 | 2.3-3 |
| FM-1015H3-2(Y) | 100 | 150 | 10-11 | 2650 | ≤48 | 1500×178×176 | 2.3-3 |
| FM-1018H3-2(Y) | 100 | 180 | 10-11 | 3200 | ≤50 | 1795×178×176 | 2.3-3 |
| FM-1020H3-2(Y) | 100 | 185 | 10-11 | 3550 | ≤52 | 2000×178×176 | 2.3-3 |
Options model with high speed or with electrical heating /
Multiple voice noise reduction technology more quiet , noise low for 45dB .
Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other
entrances of high-grade places etc
Installation height: 2.3-3m
Professional air duct design can realize more silent effect and superior performance of the product
High-quality ball bearing to ensure motor running more smoothly and silent
